概览
产品详情

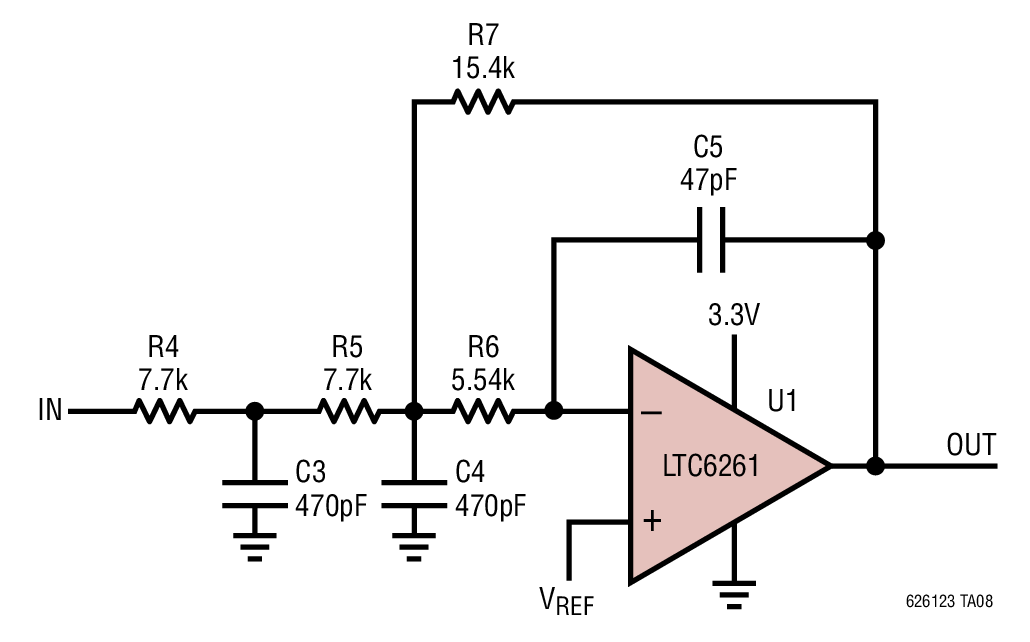

LTC6261 / LTC6262 / LTC6263 是单 / 双 / 四通道运算放大器，具有低噪声、低功率、低电源电压、以及轨至轨输入和输出。这些器件可在驱动高达 1nF 电容性负载时提供稳定的单位增益。它们拥有 30MHz 增益-带宽乘积、7V/μs 转换速率，而且在采用 1.8V 至 5.25V 电源电压工作时，每个放大器仅消耗 240μA 的电源电流。低电源电流、低电源电压、高增益带宽乘积与低噪声的组合使 LTC6261 系列在诸多具有相似电源电流的轨至轨输入 / 输出运放产品当中别具一格。这些运算放大器非常适合于低功率和低噪声应用。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
