产品详情

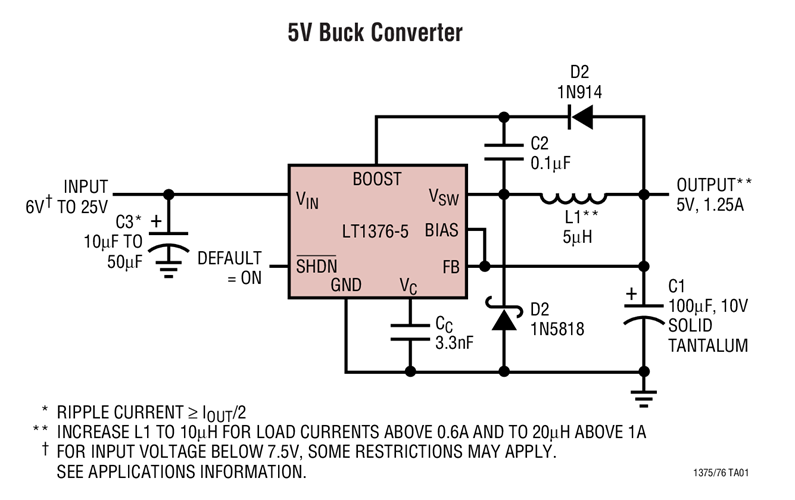

5V Buck Converter

LT®1375 / LT1376 是 500kHz 单片式、降压模式开关稳压器。一个 1.5A 开关与所有必要的振荡器、控制和逻辑电路一起内置于芯片之中。高开关频率允许大幅缩减外部组件的尺寸。该器件采用电流模式拓扑,旨在实现快速瞬态响应和良好的环路稳定性。可提供固定输出电压和可调型器件。


一种特殊的高速双极型工艺和新的设计方法可在高开关频率下实现高效率。通过采用输出对电路施加偏置并利用一个电源升压电容器使电源开关饱和,可使效率在一个很宽的输出电流范围内得以保持。一个停机信号将把这两款器件上的电源电流减小至 20μA。LT1375 可利用逻辑电平输入在外部实现同步 (同步范围为 580kHz 至 900kHz)。


Efficiency vs Load Current

工具及仿真模型

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
